| Capacity Range | 1KVA – 50KVA (Customizable) |
| Phase | Single / Three Phase |
| Efficiency | Up to 94% (Online/Double Conversion) |
| Transfer Time | Zero / < 2 ms |
| Battery | SMF / Tubular / Lithium Compatible |
| Waveform | Pure Sine Wave (THD < 3%) |
Industrial-grade power backup for mission-critical applications
Zero transfer time & high reliability with advanced IGBT technology.
Pure sine wave output safeguards sensitive medical, IT & industrial equipment.
Precise output ±1% even under fluctuating grid conditions.
Robust construction for factories, data centers, hospitals & elevators.

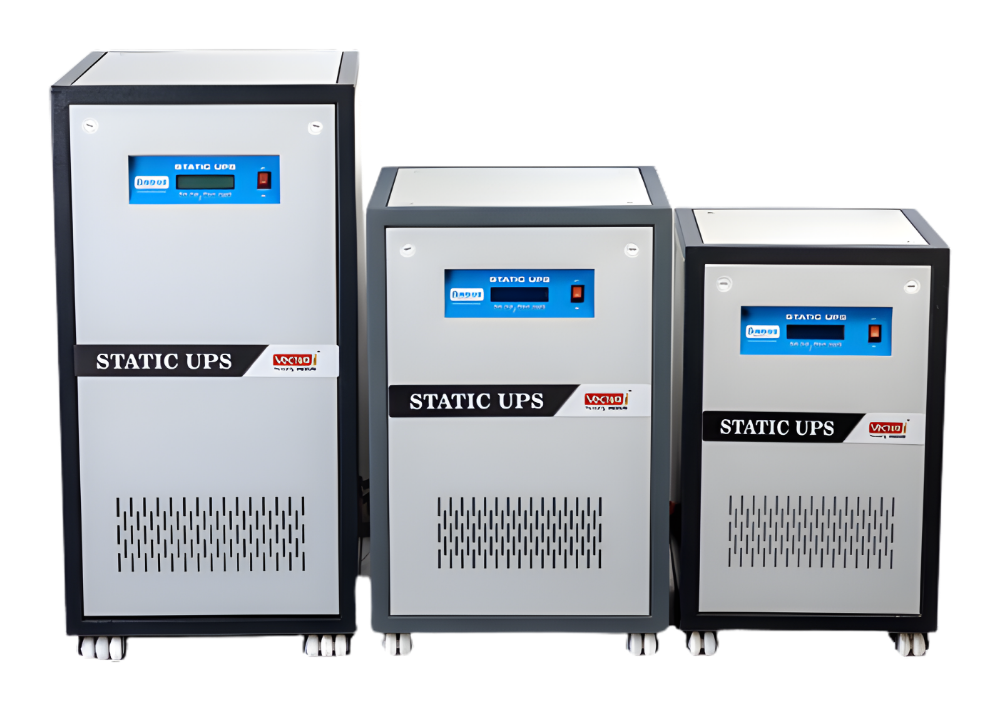

A Static UPS (Uninterruptible Power Supply) is an advanced power protection system that uses solid-state electronics to provide instantaneous backup and voltage conditioning. Unlike offline or line-interactive systems, a static UPS continuously supplies power through its inverter, delivering zero transfer time and pure sine wave output.
INDUS Static UPS systems are engineered for mission-critical environments such as data centers, hospitals, industrial automation, CNC machines, and elevator control systems. They protect against all nine power disturbances: blackouts, brownouts, sags, surges, spikes, noise, frequency variation, switching transients, and harmonic distortion.
With double-conversion topology, our static inverters isolate connected loads from raw mains power, ensuring stable, regulated output regardless of input fluctuations. Available in single-phase and three-phase configurations from 1KVA to 50KVA, with scalable battery banks for extended autonomy.
INDUS delivers turnkey solutions including installation, battery integration, and annual maintenance contracts (AMC) for uninterrupted operations.
| Parameter | Detailed Specification |
|---|---|
| Technology | Double Conversion Online / True On-Line IGBT PWM |
| Capacity Range | 1KVA / 3KVA / 5KVA / 10KVA / 15KVA / 20KVA / 30KVA / 50KVA (Custom) |
| Phase Configuration | Single Phase Input / Single Phase Output | Three Phase Input / Three Phase Output |
| Nominal Voltage | 230V AC ± 10% (Single) / 415V AC ± 10% (Three Phase) |
| Output Voltage (Steady State) | 230V / 415V AC ± 1% (Regulated) |
| Output Waveform | Pure Sine Wave (THD < 3% Linear Load) |
| Frequency (Battery Mode) | 50Hz ± 0.1Hz |
| Transfer Time | Zero (0 ms) – Online Double Conversion |
| Efficiency (AC Mode) | Up to 94% (ECO Mode available) |
| Overload Capacity | 110% for 10 min, 125% for 1 min, 150% for 30 sec |
| Battery Type | SMF / VRLA / Tubular Lead-Acid / Lithium-Ion (External Battery Bank) |
| DC Bus Voltage | 48V / 96V / 120V / 192V / 240V / 384V (depending on capacity) |
| Protections | Overload, Short Circuit, Over Temperature, Battery Deep Discharge, Over/Under Voltage, Reverse Polarity |
| Display & Communication | LCD/LED Display (Voltage, Frequency, Load %, Battery Status), RS232 / SNMP / Dry Contact (Optional) |
| Audible Alarms | Battery Low, Overload, Fault, Bypass Active |
| Operating Temperature | 0°C to 45°C (Derating above 40°C) |
| Optional Features | Manual Bypass, Isolation Transformer, SNMP Card, Extended Runtime, Parallel Redundancy |
*Custom configurations available for industrial projects. Contact INDUS for detailed engineering support.
